“品”和“质”的双重升级，首批SHACMAN H3000S下线

点击数：3582021-08-30 11:07:40　来源: 新疆立人禾贸易有限公司

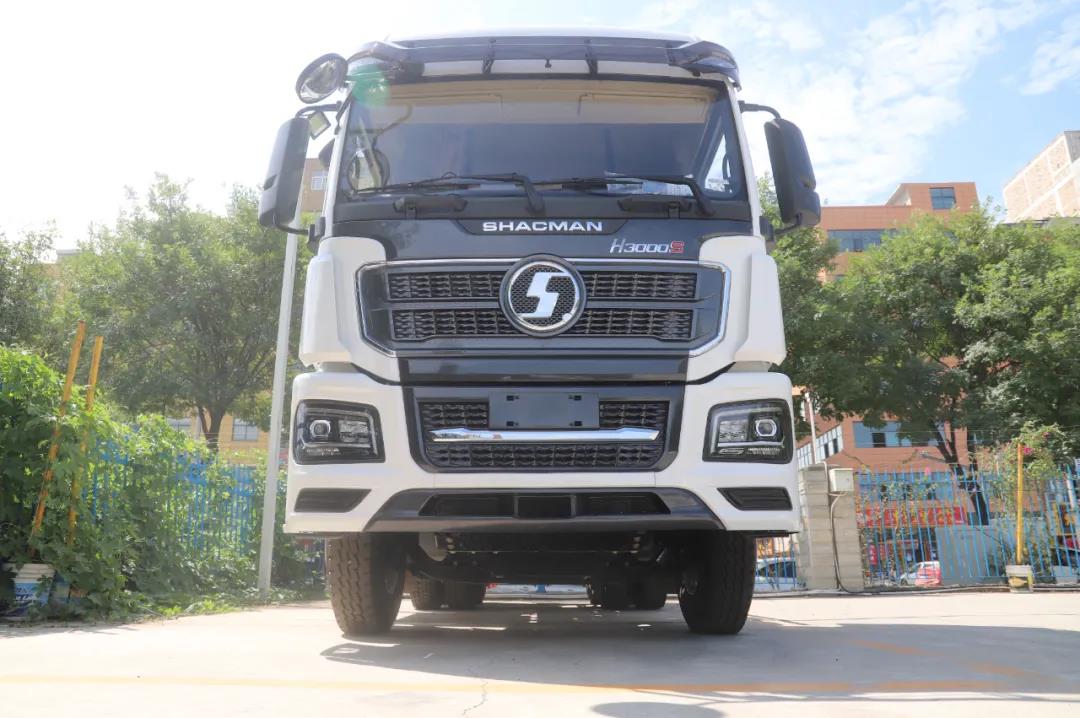

       The first batch of SHACMAN H3000S are now completed! H3000S went through a comprehensive optimization and upgrade compared to the regular H3000. Let's see what the “S” brings to the table.


       近日，首批SHACMAN H3000S下线，H3000S不仅是多了个“S”，更是全面的优化升级，让我们看看到底有哪一些改变。


       The H3000S adopts a brand-new exterior appearance and interior design. The configuration of the whole vehicle has been greatly upgraded, including redesigned pipelines and electrical systems and the performance is enhanced further. It can not only fully meet multiple transportation scenarios such as port, mineral, daily industrial products and bulk cargo transportation but exceed expectations.


       H3000S采用了全新外观和内饰设计，对比H3000整车配置上有大幅升级，性能表现更佳，满足并超越客户对港口、矿产、日用工业品以及散货运输等多个运输场景的需求。


       New exterior appearance, elegant and bold
       全新外观 更具实力



       The front cover panel uses a baked black piano paint trim panel with a large wave pattern air inlet grille and chrome plated strips around it for a stylish and elegant look. At the same time, a chrome plated trim strip is also used at the lower grille, which adds a lot of texture and definition to the overall frontal appearance.


       前面罩使用了黑色钢琴烤漆饰板，配以大面积‘叠浪式’进气格栅，四周增加镀铬亮条进行装饰，同时在下部分格栅位置上也横贯一根镀铬饰条，为车辆增添了不少质感，以及车标上方的“SHACMAN”字样，豪华且精致。

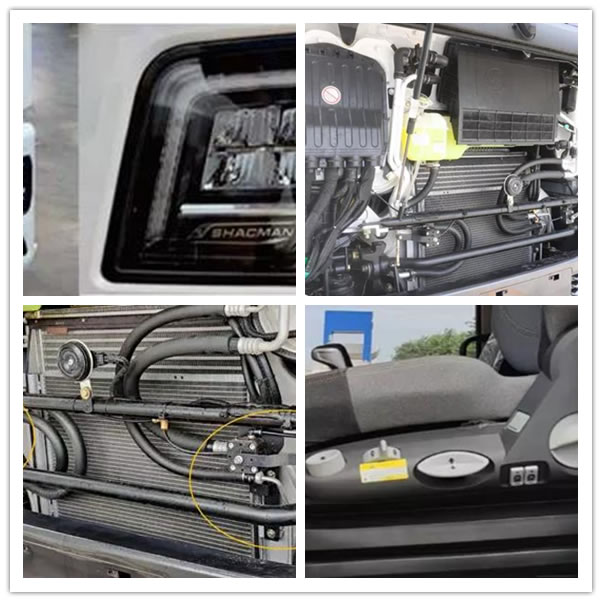

       The darkened matrix LED headlamp adopts split design for the high and low beam. The semi surrounding LED lamp belt running from the bottom corner to the opposite top corner is both used as a daytime running lamp and turn signal lamp. The LED headlamp has a color temperature of 6000K and the service life of the light source exceed 50000 hours, which is 60 times that of the halogen lamp. The SHACMAN logo is positioned at the lower inner corner of the lampshade to increase the sense of class and brand recognition.


       熏黑矩阵式的LED前大灯采用远近光分体设计，半环绕的LED灯带集成了日间行车灯和转向灯。LED大灯拥有6000K色温，光源寿命超过5万小时，为卤素灯60倍之多，在灯罩内部下方设计有SHACMAN字样，增加品牌归属感和辨识度。


       The front cover is supported by double hydraulic tappets and the pipeline is arranged in a more streamlined fashion. The windshield washer filler is located on the left-hand side at the same height of the door handle allowing ease of operation.


       前面罩采用双液压挺杆支撑，驾驶室前部管路布置清晰、捆扎细致。玻璃水加注口位于左手边位置，与门把手高度基本一致，避免因加注口过高导致使用不便。


       The newly designed cab suspension mount adopts the design of 2 front and 1 rear height valves. These mounts have improved response and tighter control compared to standard suspension setups, allowing for a smoother ride no matter how bad the road conditions.


       全新设计驾驶室悬置，采用前2后1驾驶室悬置高度阀，路遇起伏和颠簸时，悬置响应更快，控制更加精准。


       Exquisite interior, packed with technology
       精致内饰 科技十足


       Traveling in comfort is something that we all look forward to whether it’s on a plane or behind the wheel of a 60-ton truck. That’s why the H3000S is equipped with Grammer air suspended seats as standard. The seats damping, height and depth can be adjusted and the mechanical lumbar support has been upgraded to air lumbar support.


       匹配格拉默气囊座椅，其阻尼、高度、座深均可调节，并且将机械腰托升级为空气腰托，舒适性大幅提升。

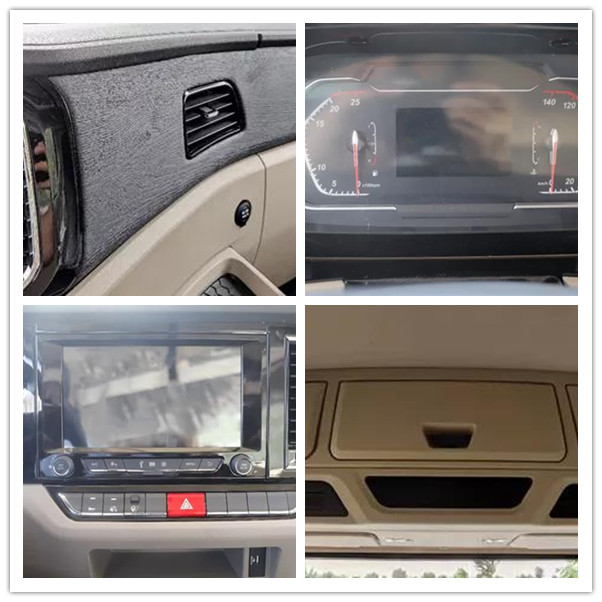

       Two tone interior design gives the passengers a more premium feeling. The vehicle is also equipped with the rearview camera to further ensure driving safety.


       用黑色和米白色将仪表台划分为上下两部分。车辆匹配倒车影像，进一步保障行车安全。



       The overall design of the instrument panel is taken in part from luxury vehicles to give off a sense of beauty and pride. A 10-inch color LCD is located in the middle, which can display rich vehicle data as well as containing the multimedia system. The main information of the vehicle can be read without entering the secondary menu. The multimedia system integrates audio-visual entertainment and air conditioning control functions. The speedometer of H3000S has been upgraded to with a digital interface, designed for information to be easily and accurately passed on to the driver. The cabin’s air conditioning system has also undergone changes with increases the cooling and heating capacity by 6% - 10%.


       仪表盘的整体造型设计偏向于乘用车风格，中间配备有一块彩色液晶显示屏，能够显示丰富的车辆数据，而且整个布局一目了然，不需要进入二级菜单就能读取到车辆主要信息，同时数字化的时速表设计，让驾驶员能够更加直观的进行读取。10寸多媒体系统集成了影音娱乐以及空调控制功能，空调制热、制冷量分别提升6%-10%。



       Three storage boxes and two storage compartments on the roof can hold most of the luggage on board.
       车顶三个规整的储物箱和两个储物格可放置绝大部分随车行李。



       Two 220V charging sockets are set at the lower end of the sleeper for easier accessibility.


       卧铺下端贴心的设置了两个220V充电插口，满足司机日常生活需求。


       Golden power, precise matching
       黄金动力 精准匹配



       These first H3000S are equipped with Weichai 430hp engine with a maximum torque of 2075N.m at 1000-1400 RPM. The vehicles also take advantage of Fastex double intermediate shaft with all helical teeth, all aluminum alloy shell design and matched with pneumatic shift assistance. Hande MAN technology axle, with small speed ratio and direct gear can take into account a variety of complex road conditions such as high-speed and mountainous areas, giving the H3000S a better ability to adapt to its surroundings. The transmission efficiency of the whole power chain is more than 97%.


       首批车辆匹配潍柴430Hp发动机，在1000-1400r/min可爆发2075N.m的最大扭矩；法士特双中间轴、全斜齿、全铝合金壳体设计，并匹配气动换挡助力，换档具有吸入感，同时更加舒适；汉德MAN技术车桥，小速比配直接挡，可以很好兼顾到高速以及山区等多种复杂路况，具备更强的适应性。整套动力链的传动效率高达97%以上。


       Overhaul of chassis system
       底盘系统全面优化

       Equipped with 700-liter aluminum alloy fuel tank, the H3000S not only hauls more but goes further. Adapting to the road conditions in various overseas market, the vehicle is equipped with side panel protection, water tank protection and oil pan protection. A fuel filter element is added to effectively protect the key assemblies of the vehicles and adapt to various road conditions.


       该批车辆匹配700升铝合金油箱，大幅提升续航里程，针对海外市场综合路况，匹配防护栏，水箱保护栅、油底壳保护栅，增加一道燃油滤芯，有效保护车辆关键总成，适应各种不同路况。



       The vehicle adopts direct flow air filter, honeycomb filter element and nano filter paper with high filtration efficiency and low air inlet resistance.


This combination reduces fuel consumption while increasing the maintenance cycle of the filter element to up to 60000km.


       采用直通式空滤，蜂窝滤芯，纳米滤纸，过滤效率高，进气阻力低，整车油耗低，滤芯保养周期可达4—6万公里。



        In order to better meet the needs of overseas users, SHACMAN continues to upgrade and innovate. We have courage to make breakthroughs and are committed to providing users with reliable products and considerate services as well as more efficient operation value experience.


       为更好的满足海外用户需求，SHACMAN持续升级创新、勇于突破，致力于为用户提供可靠的产品和贴心的服务，也为用户带来更高效的运营价值体验。
